Custom Policy List for DS for Mobile

info

This document isDS for Mobileused inCustom PolicyThis is a document about.

1. Policy List

---

• Mandatory Policies

  NO	Custom Policy	Description	Type
  1	DSM_SHVIEWER_API_LICENSEKEY	SHIELD Viewer Integration API License Key	EDIT
  2	DSM_SHVIEWER_URL	SHIELD Viewer URL	EDIT

• SHIELD ID Related Policies

  NO	Custom Policy	Description	Type
  1	DSM_SECURITY365_MOBILE_SERVICE	Mobile service information registered in Security 365	EDIT

• Feature Policy

  NO	Custom Policy	Description	Type
  1	DSM_SETTING_DISABLE	Disable Mobile SCI Server Configuration	Check
  2	DSM_DELETE_DOCFILE_PERIOD	Setting the retention period for deleted documents in the recycle bin	EDIT
  3	DSM_MASKING_USERINFO	User ID, Name Masking	Edit
  4	DSM_CAPTURE_ENABLE	Allow mobile screen capture	check
  5	DSM_SHVIEWER_SCREEN_MARK	Mobile Screen Watermarking	Edit
  6	DSM_COMPANY_NAME	Company name for marking on mobile screen watermarks	Edit

2. Custom Policy Description

---

2.1 DSM_SHVIEWER_API_LICENSEKEY

item	Description
ID	DSM_SHVIEWER_API_LICENSEKEY
Type	EDIT
Product Type	DSMOBILE
Value	Issued License Key
Description	API license key for SHIELD Viewer integration
Note	Essential Policies for Shield Viewer Integration

2.2 DSM_SHVIEWER_URL

item	Description
ID	DSM_SHVIEWER_URL
Type	EDIT
Product Type	DSMOBILE
Value	SHIELD Viewer URL
Description	URL for integrating with SHIELD Viewer
Note	Essential Policies for Shield Viewer Integration

2.4 DSM_SECURITY365_MOBILE_SERVICE

item	Description
ID	DSM_SECURITY365_MOBILE_SERVICE
Type	EDIT
Product Type	DSMOBILE
Value
Description	Mobile service information registered in Security 365
Note	* Retrieves the policy of the top-level Root group.

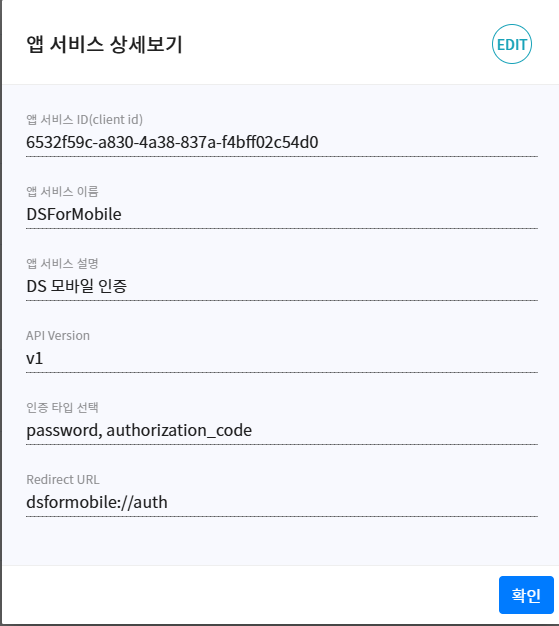

• Input Value Example

    {
      "s365_url": "https://login.softcamp.co.kr/",
      "extra": "rLmhLelI-jjVWQ5ii-Z1t9Zgh8-M0jDyfY2",
      "mobile_clientId": "6532f59c-a830-4a38-837a-f4bff02c54d0",
      "mobile_clientKey": 앱 서비스 추가 시 발급 된 Key,
      "mobile_clientName": "DSForMobile",
      "mobile_redirectUri": "dsformobile://auth"
    }

item	Content	Description
s365_url	authentication url	The URL to register must end with a / string.
extra	Site ID registered in security365	"runMode":"appAuth", Settings when using SHIELD ID custom screen
mobile_clientId	mobile service id	---
mobile_clientKey	mobile client key	Key issued when adding an app service
mobile_clientName	mobile app service name
mobile_redirectUri	Redirect URL

2.5 DSM_SETTING_DISABLE

item	Description
ID	DSM_SETTING_DISABLE
Type	Check
Product Type	DSMOBILE
Value
Description	Disable Mobile SCI Server Configuration
Note

2.6 DSM_DELETE_DOCFILE_PERIOD

item	Description
ID	DSM_DELETE_DOCFILE_PERIOD
Type	Edit
Product Type	DSMOBILE
Value
Description	Setting the duration for which deleted documents are stored in the trash
Note

2.7 DSM_MASKING_USERINFO

item	Description
ID	DSM_MASKING_USERINFO
Type	Edit
Product Type	DSMOBILE
Value
Description	User ID, Name Masking
Note	enabled: Whether to use the masking feature (true/false) masking_type: Define how to mask (e.g., partial character masking, full masking) masking_char: Character to use for masking (e.g., *) exposed_prefix: Number of characters to expose from the beginning exposed_suffix: Number of characters to expose from the end domain_exposed: Whether to expose the domain in emails, etc. (e.g., can be added to email policy)

{
"userName": {
  "enabled": true,
  "masking_type": "partial_character",
  "masking_char": "*",
  "exposed_prefix": 2,
  "exposed_suffix": 0
},
"userId": {
  "enabled": true,
  "masking_type": "partial_character",
  "masking_char": "*",
  "exposed_prefix": 3,
  "exposed_suffix": 0
}
}

2.8 DSM_CAPTURE_ENABLE

item	Description
ID	DSM_CAPTURE_ENABLE
Type	check
Product Type	DSMOBILE
Value
Description	Allow mobile screen capture
Note

2.9 DSM_SHVIEWER_SCREEN_MARK

item	Description
ID	DSM_SHVIEWER_SCREEN_MARK
Type	EDIT
Product Type	DSMOBILE
Value
Description	Mobile Screen Watermarking
Note

• Value Structure

Key	Type	Value	Description
TagetDoc	string	N|D|A	Marking Target Specification - For detailed explanation, refer below
text.layout	string	"tiled"	Watermark Placement Method - For detailed explanation, refer below
text.opacity	number	0.25	Watermark Transparency (0.0 ~ 1.0)
text.watermarkTxt	string	"CNDI"	Text to be marked as a watermark
text.watermarkTxtSize	number	18	Watermark font size (expected in pt)

• TargetDoc (Watermarking Target)

division	Meaning
N	General Document
D	Document Security Document
A	AIP Document

• example

Configuration Value	Meaning
N|D	Marking only general + document security documents
D|A	Document Security + AIP Document Marking
N|D|A	Marking in all documents

• text.layout (Watermark Placement Method)

value	Description
tiled	Repeat at a 30-degree angle in full screen (tile format)
top / middle / bottom	Fixed display on a specific line

• Line Mode Combination Example

Settings	Output Location
top bottom	Top + Bottom
top middle	Top + Middle
middle bottom	top + bottom
top middle bottom	Top + Middle + Bottom

• WatermarkTxt Structure

character	Description
C	Position or company name (can use DSM_COMPANY_NAME according to policy)
D	date
I	User ID
N	Username
G	Department Name

• JSON Example
  • Tile Mode (tiled)

{
  "TagetDoc": "N|D|A",
  "text": {
    "layout": "tiled",
    "opacity": 0.25,
    "watermarkTxt": "CNDI",
    "watermarkTxtSize": 18
  }
}

- 라인 모드 (top / middle / bottom 조합)

{
  "TagetDoc": "N|D|A",
  "text": {
    "layout": "top middle bottom",
    "opacity": 0.25,
    "watermarkTxt": "CNDI",
    "watermarkTxtSize": 18
  }
}
